Welding thin to medium-gauge stainless steel sheets requires strict thermal management and precise parameter selection. Because austenitic stainless steels exhibit 30% lower thermal conductivity and 50% higher thermal expansion coefficients than plain carbon steels, they are particularly prone to severe warping, burn-through, distortion, and carbide precipitation if excessive heat is applied during joining.
Choosing the appropriate welding process—Gas Tungsten Arc Welding (GTAW/TIG), Gas Metal Arc Welding (GMAW/MIG), or Fiber Laser Welding—depends on sheet thickness, production volume, joint design, and required aesthetic finish.
1. Process Comparison: TIG, MIG, and Laser Welding
1. Gas Tungsten Arc Welding (GTAW / TIG)
TIG welding remains the primary manual process for high-precision, sanitary, and aesthetically critical stainless steel sheet fabrication.
-
Best Thickness Range: $0.5 text{ mm to } 3.0 text{ mm}$
-
Key Advantages: Exceptional arc control, clean weld bead geometry, zero spatter, and fine control over heat input.
-
Limitations: Slower travel speeds compared to automated processes; requires skilled manual operation.
2. Gas Metal Arc Welding (GMAW / MIG / MAG)
MIG welding is favored for higher-speed production and thicker sheet gauges or structural frames where higher deposition rates are required.
-
Best Thickness Range: $2.0 text{ mm and thicker}$
-
Key Advantages: High travel speeds, high deposition rates, easy automation.
-
Limitations: Risk of weld spatter (requiring post-weld cleanup), higher heat input than laser, and potential for burn-through on thin-gauge sheet ($< 1.2 text{ mm}$).

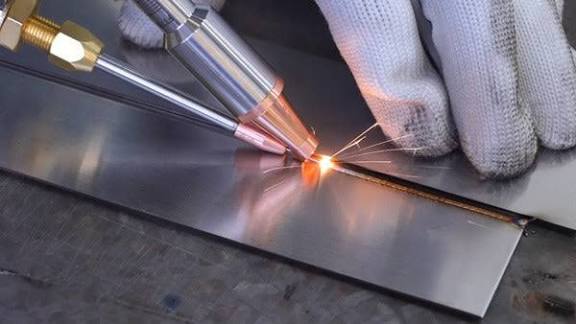

3. Fiber Laser Welding (Handheld & Automated)
Fiber laser welding focuses a high-energy laser beam to melt joint interfaces with minimal thermal spreading.
-
Best Thickness Range: $0.5 text{ mm to } 6.0 text{ mm}$
-
Key Advantages: Ultra-fast travel speeds ($2times text{ to } 10times$ faster than TIG), near-zero Heat-Affected Zone (HAZ), negligible thermal distortion, and minimal or no post-weld grinding needed.
-
Limitations: Requires extremely tight joint fit-up (gap $< 10%$ of sheet thickness); higher equipment capital expense.
2. Shielding & Backing Gas Selection
Protecting the molten weld pool and the hot root side of the joint from atmospheric oxygen and nitrogen contamination is essential to avoid porosity, embrittlement, and “sugar-like” oxide crusting (weld sugaring).
$$text{Atmospheric Exposure} + text{Molten Stainless Steel} longrightarrow text{Heavy Chromium Oxidation } (text{Cr}_2text{O}_3) + text{Loss of Corrosion Resistance}$$
|
Welding Process |
Shielding Gas Composition |
Backing Gas (Root Pass) |
Technical Function |
|
TIG (GTAW) |
$100% text{Argon (Ar)}$ or $text{Ar} + 2text{–}5% text{H}_2$ |
$100% text{Argon}$ or $90% text{N}_2 + 10% text{H}_2$ |
Hydrogen additions increase arc heat density and travel speed; nitrogen maintains austenite balance. |
|
MIG (GMAW) |
$text{Ar} + 1text{–}2% text{O}_2$ or $text{Ar} + 2text{–}5% text{CO}_2$ |
$100% text{Argon}$ |
Minor $text{O}_2/text{CO}_2$ stabilizes the arc spray transition without oxidizing alloying elements. |
|
Laser Welding |
$100% text{Argon}$ or $100% text{Nitrogen}$ |
$100% text{Argon}$ |
High-purity argon protects the keyhole; nitrogen gas suppresses plasma plume formation. |
3. Heat Input Control and Distortion Mitigation
Managing thermal distortion in stainless steel sheet fabrications relies on minimizing total linear heat input ($Q$).
$$Q = frac{V times I times 60}{v times 1000} times eta quad (text{kJ/mm})$$
Where:
-
$V$ = Welding Voltage ($text{V}$)
-
$I$ = Welding Current ($text{A}$)
-
$v$ = Travel Speed ($text{mm/min}$)
-
$eta$ = Thermal Efficiency Factor (TIG $approx 0.6$, MIG $approx 0.8$, Laser $approx 0.85$)
Practical Techniques to Eliminate Warping:
-
Pulsed Arc Current: Utilizing High-Frequency Pulsed TIG (100–500 Hz) allows the weld pool to freeze rapidly between current peaks, lowering net heat input while maintaining full penetration.
-
Copper Chill Bars & Backing Fixtures: Clamping copper backing bars directly behind the weld joint rapidly draws heat away from the sheet, drastically reducing the thermal envelope.
-
Staggered / Back-Step Welding: Short intermittent weld stitches (e.g., $25 text{ mm}$ welds spaced apart) distribute heat evenly along the joint length rather than concentrating it in a continuous line.
-
Filler Metal Compatibility: Always match filler wire to base metal (e.g., ER308L for Grade 304/304L, ER316L for Grade 316/316L). The low-carbon “L” designation is mandatory to prevent chromium carbide precipitation along grain boundaries during thermal cycles.
4. Post-Weld Cleaning & Surface Restorations
Even with proper shielding gas, the heat tint zone adjacent to the weld pool loses surface chromium. To restore full corrosion performance, post-weld chemical cleaning is necessary:
-
Electrochemical Weld Cleaning: Applies an alternating/direct current through an electrolyte-soaked carbon fiber brush over the weld seam. Instantly neutralizes heat tint, removes free iron, and passivates the surface in a single non-destructive step.
-
Pickling Paste Application: A hydrofluoric and nitric acid mixture ($text{HF} + text{HNO}_3$) chemically strips oxidized surface layers and depleted chromium zones. Requires careful neutralization and disposal handling.
Summary: TIG welding provides maximum arc control for intricate, sanitary sheet metal assemblies, while fiber laser welding offers unparalleled speed, precision, and low thermal distortion for modern automated production lines. Rigorous purge gas protection and strict control over linear heat input are essential to maintain the structural integrity and corrosion resistance of welded stainless steel sheets.
